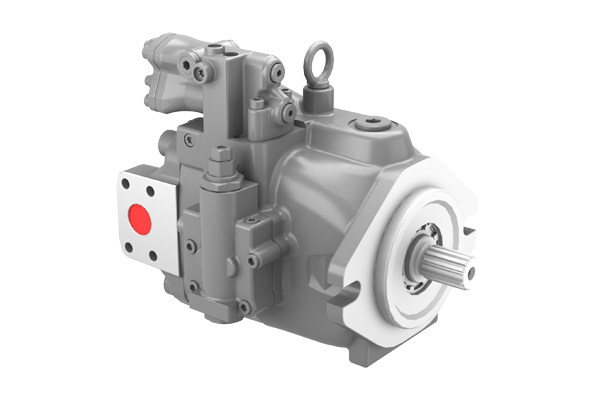

HP6V Series Swash-plate Type Axial Piston Variable Displacement Pump

Series of pictures

Applied to high-voltage open-loop systems, it adopts a specially designed new power structure with a smaller size and stronger anti-pollution ability.

Specifications: 18~105

Rated pressure: 300~350 bar

Peak pressure: 320~400 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

·Variable pump in swash-plate design for open circuit.

·High continuous pressure.

·Exceptional self-priming capability.

·Excellent reliability and long life.

·High power to weight ratio.

·Variety of control options.

·Optional through drive.

·Quick control response.

·Low pressure pulsation and low noise.

·Developed for engineering, mobile vehicles, industrial, other industrial application and agricultural machinery

Technical specifications

Size		18	28	35	47	65	76	85	105
Displacement(cc/rev)		18	28	35	47	65	76	85	104.3
Speed	Rated(rpm)	3300	3000	2850	2700	2600	2400	2400	2200
	Max(rpm)	3900	3600	3400	3250	3140	3000	3000	2600
	Min(rpm)	600
Pressure	Rated(bar)	300	300	300	320	320	320	320	350
Pressure	Peak(bar)	320	320	320	350	350	350	350	400
Casting pressure (Relative)	Rated(bar)	2
Casting pressure (Relative)	Peak(bar)	4
Suction pressure (Absolute)	Rated(bar) Oil viscosity ≤ 30mm2/s	1
Suction pressure (Absolute)	Peak(bar)	5
Casting oil filling volume （L）		0.4	0.55	0.55	0.6	0.65	0.8	0.9	1
Oil viscosity（ mm2/s）		10~1000, optimal range 16~36
Oil temperature （ ℃）		-20~100
Oil cleanliness		20/18/15 (SO 4406) and above
Weight（ kg） Without auxiliary flange		15.9	17	18.7	21.5	25	28	33	45
