601100
Specifications：145×2/375×2 cc/rev
Rated pressure：380/420 bar
Peak pressure：420/460

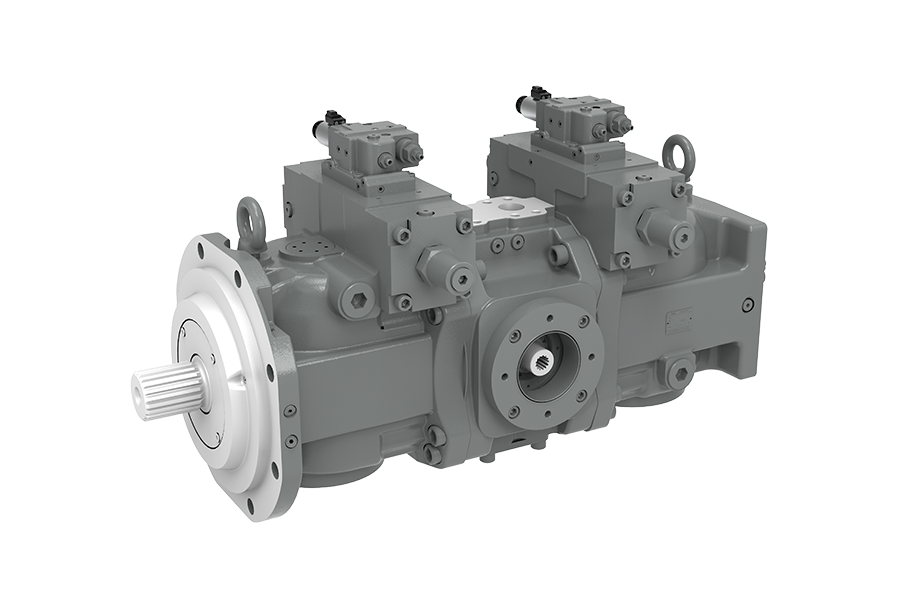

Variable axial piston double pump design for the open circuit.
High working pressure (460 bar) and long lifetime.
Newly developed control valve with built-in high-precision filter to enhance anti pollution capability.
Horizontal piston design, short longitudinal length, large diameter variable piston, faster variable response speed.
More power output interfaces can be provided. The variable speed ratio of the power take-off improves the boosting effect and maximizes the performance of the auxiliary pump.
The booster impeller enhances the oil suction capacity of the entire pump and increases the operating speed of the pump. Simultaneously equipped with a booster impeller and a power take-off, it can save the cost of the main engine transfer case.
| Size | V93N 145 | V93N 375 | |
| Displacement(cc/rev) | 145×2 | 375×2 | |
| Speed | Rated speed (rpm) | 2200 | 1600 |
| Maximum speed (rpm) | 2500 | 1700 | |
| Pressure | Rated pressure (bar) | 380 | 420 |
| Maximum pressure (bar) | 420 | 460 | |
| Maximum torque (N.m) @Vgmax and Δp=380bar | 1754 | 4538 | |
| Case volume (L) | 3 | 13 | |
| Suction port pressure (abs bar) | 0.8 ～ 2 | ||
| Drain pressure (bar) | 1 | ||
| Max. drain pressure (bar) | 3 *4 | ||
| Mass (Kg) | 170 | 400 | |
| Temperature range (℃ ) | -20 ～ 95 | ||
| Hydraulic fluid viscosity range (mm2/s) | 10 ～ 1000 (optimum viscosity range 16 ～ 36) | ||
